Anti Earthquake Prefabricated Steel Bridges 3m To 20m

Place of Origin	China
Brand Name	GN
Certification	CE,ISO
Model Number	Customer customization

Product Details

Durability:

High

Steel Structure:

H Steel

Maintenance:

Low

Cost:

Cost-effective

Corrosion Resistance:

High

Product:

Steel Structure

Sustainability:

Eco-friendly

Design Parameter:

Wind Load, Snow Load And Earthquake

Type:

Prefabricated

Construction Time:

Short

Purlin:

C Z Purlin

Steel Frame Surface:

Galvanized Or Painted

Hight:

3m To 20m

Coating:

Hot Dip Galvanizing, Painting

Using Life:

70years

Highlight:

Prefabricated Steel Bridges 3m

Prefabricated Steel Bridges 20m

Anti Earthquake prefab steel bridges

Payment & Shipping Terms

Minimum Order Quantity

50tons

Price

680-850USD/TON

Packaging Details

standard package for 40'HQ container,welding pallet package for 40'HQ

Delivery Time

25-45days

Payment Terms

L/C, T/T

Supply Ability

2000tons/month

Product Description

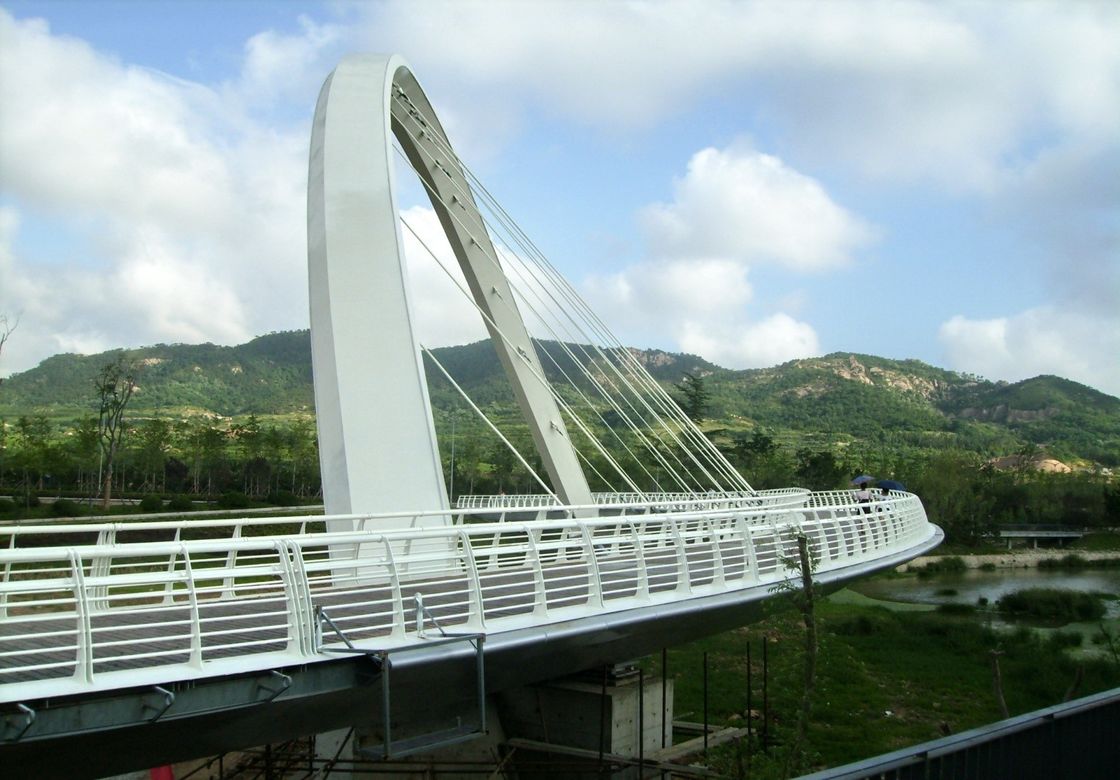

Steel Structure fabricated beams Building Manufacture Steel Prefabricated structure for steel bridge Anti Earthquake Prefabricated Steel Bridges 3m To 20m 0

Anti Earthquake Prefabricated Steel Bridges 3m To 20m 1

Anti Earthquake Prefabricated Steel Bridges 3m To 20m 2

Anti Earthquake Prefabricated Steel Bridges 3m To 20m 3

Products details
Size	length X Width X Eave height, according to requirements
Type	single slope, double slope, muti-slope; single span,double-span ,multi-span; single floor, double floors
Column and beam	hot rolled or weld H section steel, grade Q345(S355JR)
Bracing	X or V or other type bracing made from angle , round pipe
Purlin	C or Z section size of C100~C320,Z160~Z300
Roof and wall	single colorful corrugated steel sheet; sandwich panel with insulation of EPS, ROCK WOOL or PU
Accessories	semi-transparent skylight belts, ventilators, down pipe, out gutter etc.
Surface	frame steel:twice anti-corrosive primer and one finish paint; secondary steel:hot galvanized
Package and loading	nude cargo loaded into 40'HQ
Connection type	Bolted,welding , rivet
Design software	PKPM , TEKLA , 3D3S
Certificate	ISO9001:2008 , BV.

Our excellent design team will design the steel structure building for you. We can quote If you give the following information.

1. Location (where will be built? ) _____country, area
2. Size: Length*width*height _____mm*_____mm*_____mm
3. Live load on roof(KN/M2), live load on second floor(KN/M2) if have
3. Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4. Snow load (max. Snow height) _____kn/m2, _____mm
5. Anti-earthquake _____level
6. Brickwall needed or not If yes, 1.2m high or 1.5m high
7. Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels, Corrugated steel sheet with fiber glass wool
will be suggested; If not, the Corrugated steel sheet will be ok. The cost of the latter will be much lower than that of the
former.
8. Door quantity & size _____units, _____(width)mm*_____(height)mm
9. Window quanity & size _____units, _____(width)mm*_____(height)mm
10. Crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
11. Skylight belt, ventilator and any other accessories if needed.
We are largest steel structure manufacturer in China. We own experienced design engineers, advanced automatic welding
machines,strict quality control system, best after service, etc.

We could design, fabricated, supply and construct all kinds of steel structure projects in all over the world. Such as, steel
frame tructure for workshops or warehouses, space frame roof for public buildings, truss frame for large gym, etc.
